Homecare Bed
FCS-BD-JM20
Our Home Care Bed is designed for optimal support and ease of use, featuring a 200Kg(450lbs) weight capacity and suitable for residents weighing up to 190Kg(425lbs). It’s built to provide maximum comfort and convenience for both the user and caregiver.
Features:
- Height Range: Adjustable from 200mm(7.8”)to 760mm(30”), offering flexibility for easy transfers and patient care.
- Length Extension: Integrated 193cm(76”)or 203cm(80”) length options to accommodate various needs.

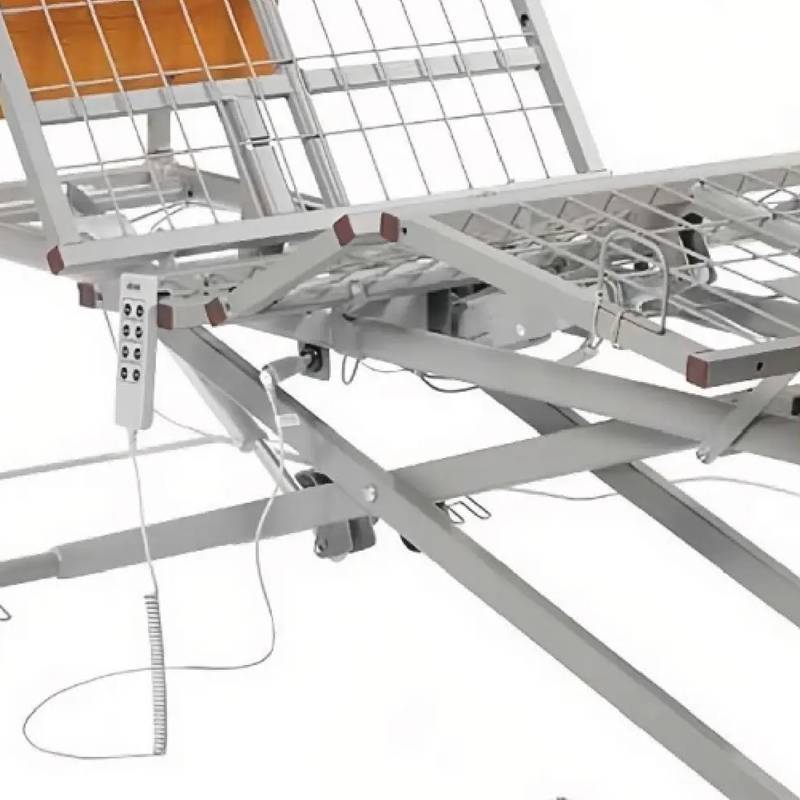

- Handheld Control: The 8-function pendant includes an autocontour, making adjustments simple and precise.
- Stable Lift: Powered by 3 DC motors, the bed ensures a smooth, vertical lift with true level positioning. Four sealed bearings provide quiet operation.
- Heavy Duty Casters: Equipped with eight 75 mm casters, four of which are locked, plus two guide locks for added security and stability.
- Wall Bumper: Fixed bumper to protect walls from damage.
| Height – Low Position | 198mm |
| Height – High Position | 760mm /30” |
| Weight Capacity | 200Kg / 450lbs |

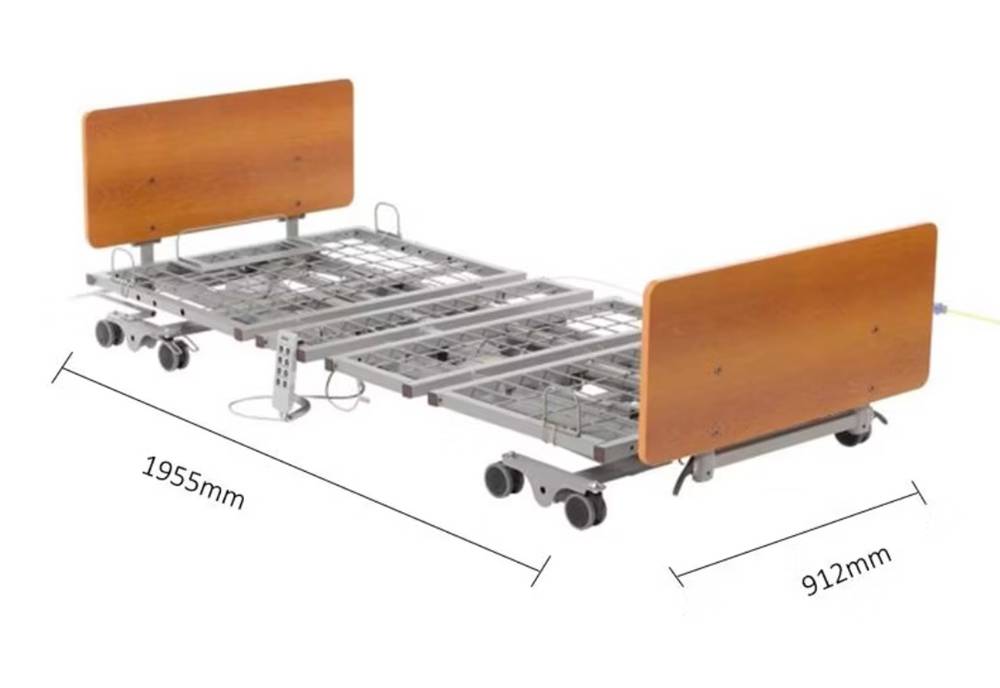

| Bed Dimensions | 1955*912*198mm / 77”*36”*7.8” |
| Width & Length Expansion | max length 2280mm/ 90” no width expansion |
| Motors Loading Capacity | Overall lifting – 8000N; Back supporting – 5000N
Leg supporting – 3500N |
| Input Voltage | 100-240 VAC, 50/60 Hz |
| Comfort Chair | Head deck lifting angle 60° |
| Leg/Foot Lift | Maximum hip-knee angle 30° |
| Battery Backup Option | 24V1.3A Lead acid battery |
| Battery backup warranty for 12 months | |
| Warranty | 10 years on Frame, 15 years on Welds, 2 years on Electrical |

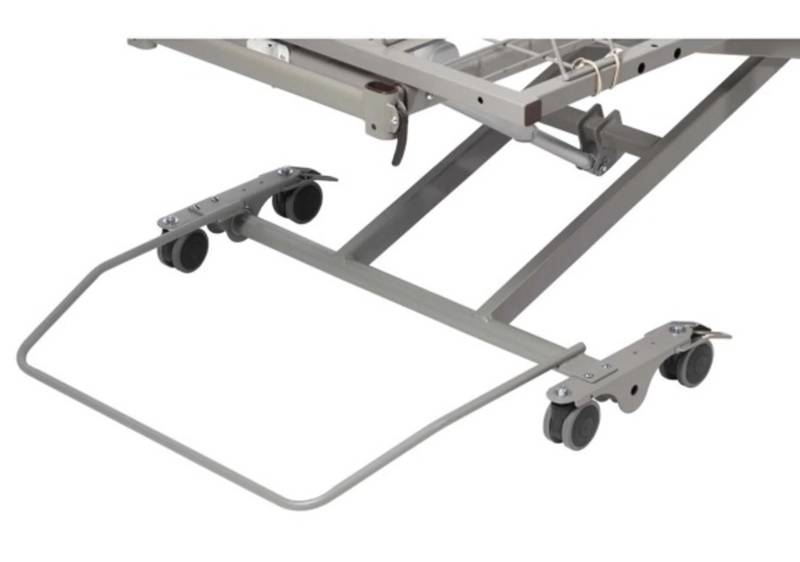

| Caster Details | Head of the bed: 3” casters, 2 with brakes and 2 without
Food of the bed: 3” swivel casters, 2 with brakes and 2 without |
