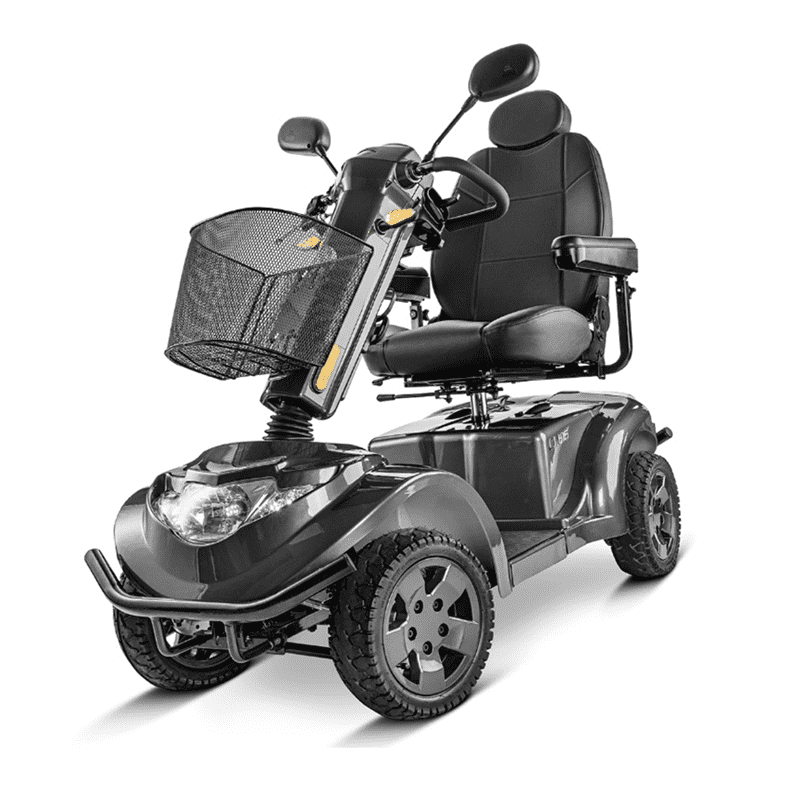

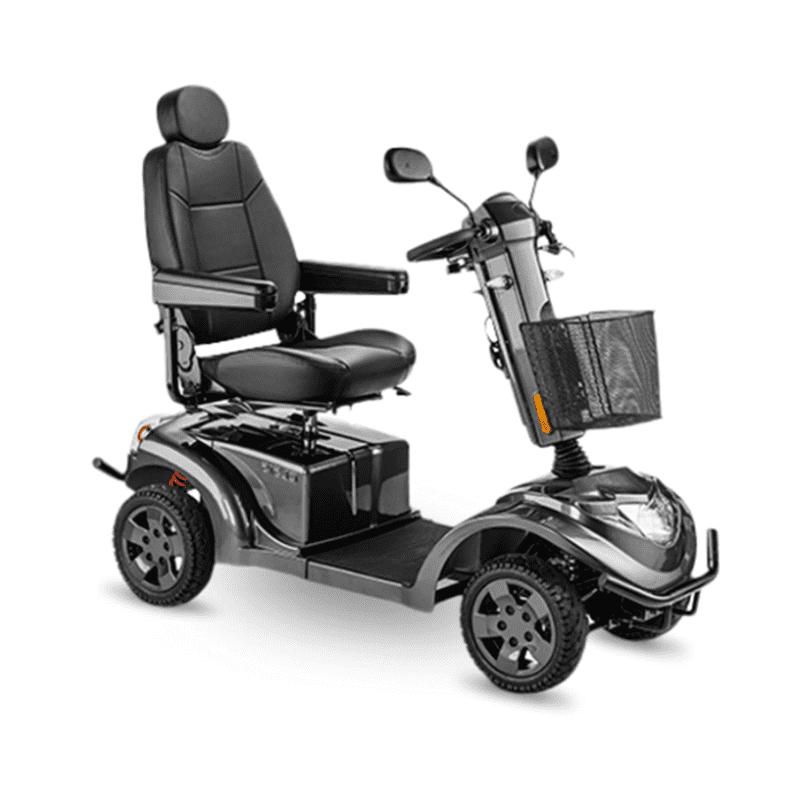

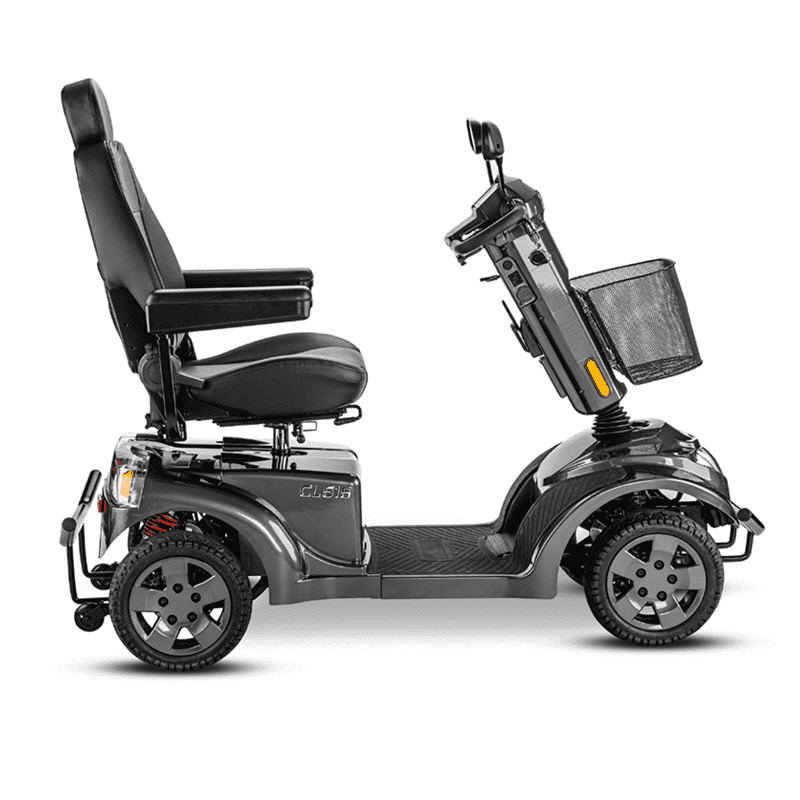

Electric Scooter
FCS-ST-QF515
Operation Features
Extremely easy to operate
Smooth manual steering for effortless control
Speed control rocker switch, designed for both thumb and finger activation
Spring-loaded brake with mechanical release for quick stopping

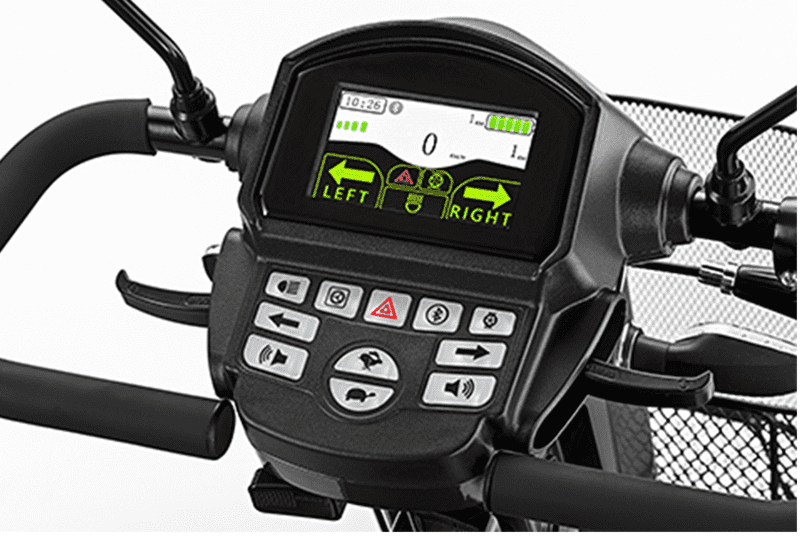

User-friendly control panel with speed pre-selection options
Adjustable Features
The backrest angle, back extension and the height of the seat and armrests are adjustable
The seat has adjustment rails and can be rotated through 360°
| Length | 1,650 |
| Height | 1,110 |
| Width | 680 |
| Wheels | 4 ea |
| Drive wheel | 4.00.8 |
| Motor power | 700- 3,000 W |
| Batteries | 80 Ah |
| Charger | 12 A |
| Electronics | PG120 A |
| Range | up to 40 km |
| Speed | 15 |
| Armrest height | 250 |
| Seat width, adjustable | 460 |
| Seat height | 500 – 610 |
| Seat depth | 460 |
| Wheel diameter drive wheel | 315 |
| Turning radius | 1,950 |
| Ground clearance | 110 |
| Permissible uphill / downhill gradient | 10° (18 %) |
| Empty wt. with/without battery | 100/150 |
| Permissible user weight | 205 |
| Permissible total weight | 355 |
